Product Description

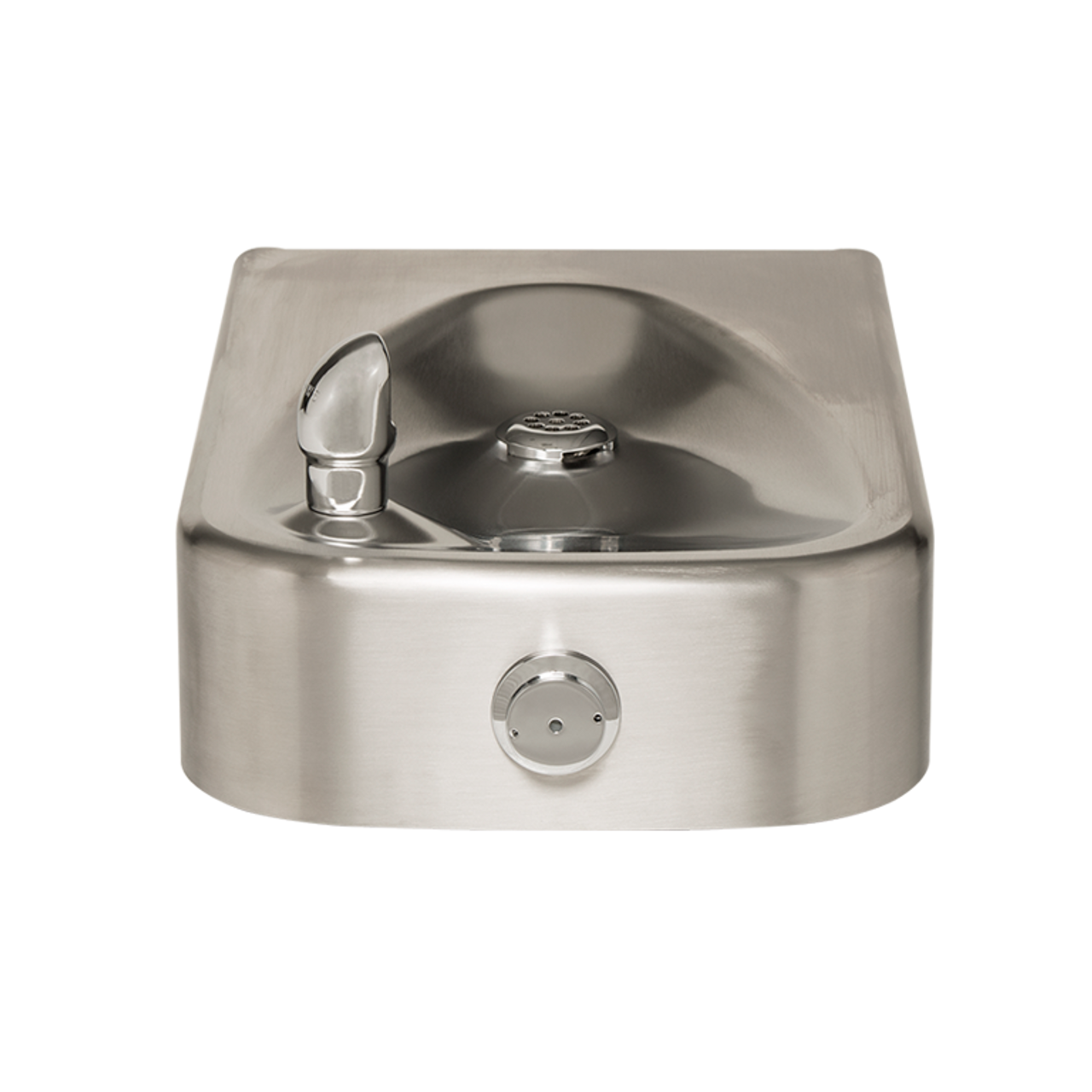

Short Description: Model 1107L, wall mounted, low profile, barrier-free, 14 gauge satin finish stainless steel drinking fountain with 100% lead free waterways.
Spec Details: Model 1107L wall mounted barrier-free drinking fountain shall include a 14 gauge Type 304 Stainless Steel satin finish basin with integral 1/4" (.6 cm) thick stainless steel back plate. Push-button operated stainless steel valve with front-accessible cartridge, in-line strainer and flow adjustment provides 100% lead free waterways, polished chrome-plated brass vandal-resistant bubbler head, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant stainless bottom plate, and a 1-1/4" NPT concealed all cast-brass trap. Unit can be mounted to meet ADA or Child ADA specifications.
Color/Finish Category: Stainless Steel
Color/Finish Name: Stainless Steel Satin
Installation Type: Barrier-Free Wall Mounted
Features & Benefits:
- 100% lead free waterways
- 14 gauge Type 304 Stainless Steel design with integral mounting plate provides a well constructed sturdy fountain
- Maintenance is made easy with front access to valve adjustment and cartridge replacement
- Beautiful satin finish resists stains and corrosion
- Soft rounded corners prevent mishaps and other accidents that may occur once the fountain is installed
- One-piece stamped basin with low-profile design make for an aesthetically pleasing and durable unit
