Product Description

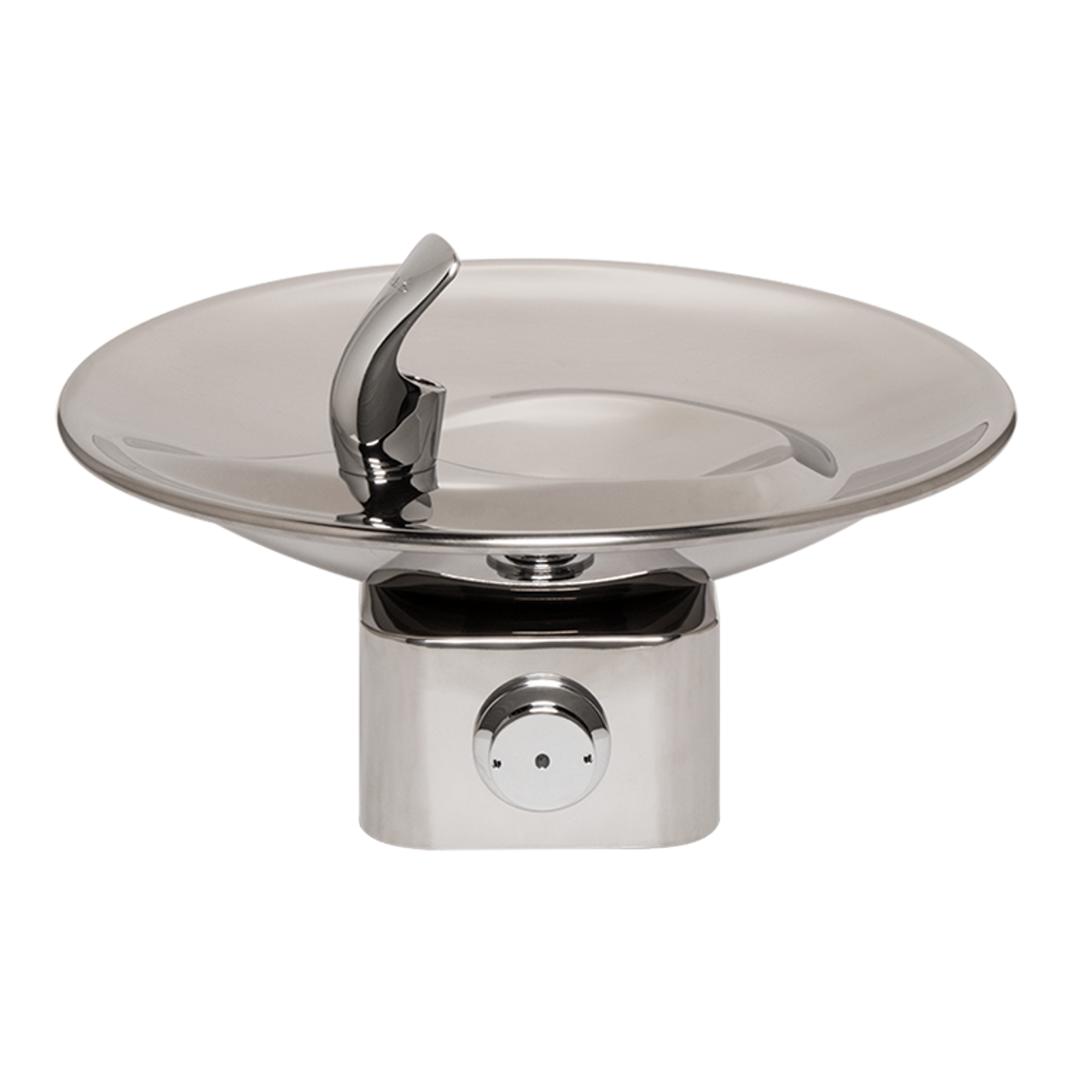

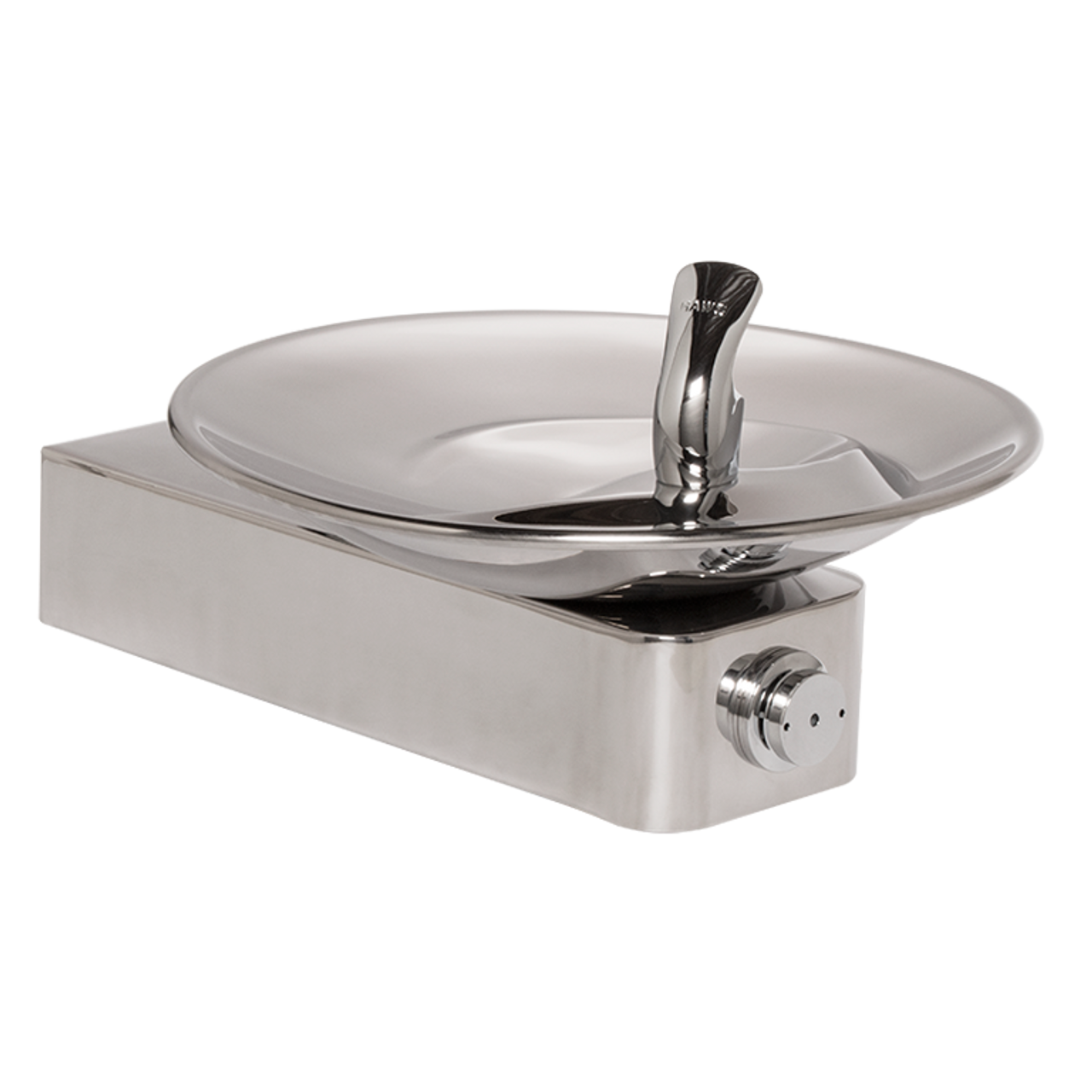

Short Description: Model 1001HPS, barrier-free, high polished stainless steel drinking fountain with a sculpted bowl and 100% lead-free waterways.
Spec Details: Model 1001HPS wall mounted barrier-free drinking fountain shall include an 18 gauge Type 304 high-polished stainless steel finish basin with integral swirl design, 14 gauge Type 304 high-polished stainless steel wall bracket, 100% lead-free waterways, push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, and 1-1/4" O.D. (3.2 cm) waste pipe. (P-trap and stop require rear access). ................................................................................. REQUIRES MODEL 6700 PRICED SEPARATELY.
Color/Finish Category: High-Polished Stainless Steel
Color/Finish Name: High Polished Stainless Steel
Installation Type: Barrier-Free Wall Mounted
Features & Benefits:
- 18 gauge Type 304 Stainless Steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket
- 100% lead-free waterways
- Maintenance is made easy with front access to valve adjustment and cartridge replacement
- Trap and shut off must be in the wall
- Polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow eliminate water splash
- Beautiful high-polished finish resists stains and corrosion
Useful Documents
Spec SheetInstallation Drawing
Parts Breakdown Drawing
Operational / Maintenance Manual
