Product Description

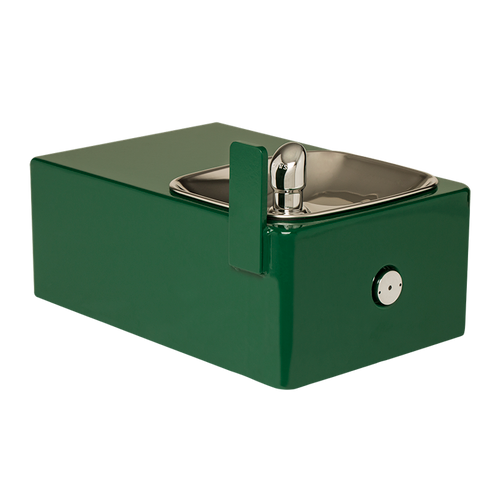

Short Description: Model 1025, wall mounted, barrier-free, single bubbler, 11 gauge fabricated steel drinking fountain with green powder-coated finish over a galvanized substrate.
Spec Details: Model 1025 wall mounted barrier-free drinking fountain shall include a stainless steel basin contained in an 11 gauge green powder-coated galvanized steel wall bracket, push-button operated stainless steel valve with front-accessible cartridge and flow adjustment, polished chrome-plated brass vandal-resistant shielded bubbler head, 100% lead-free waterways, polished chrome-plated brass vandal-resistant waste strainer with top-down access, vandal-resistant bottom plate, and chrome-plated 1-1/2" NPT trap.
Color/Finish Category: Painted Steel, Heavy Gauge
Color/Finish Name: Powder Coated Steel
Installation Type: Barrier-Free Wall Mounted
Features & Benefits:
- Heavy-duty 11 gauge fabricated galvanized steel, with green powder-coated finish provide an exceptional corrosion resistance in one tough built fountain
- 100% lead-free waterways
- Maintenance is made easy with front access to valve adjustment and cartridge replacement
- Welded heavy-duty bubbler guard protects the drinking point from misuse
Useful Documents
Spec SheetInstallation Drawing
Parts Breakdown Drawing
Operational / Maintenance Manual
MasterSpec® Files
