Product Description

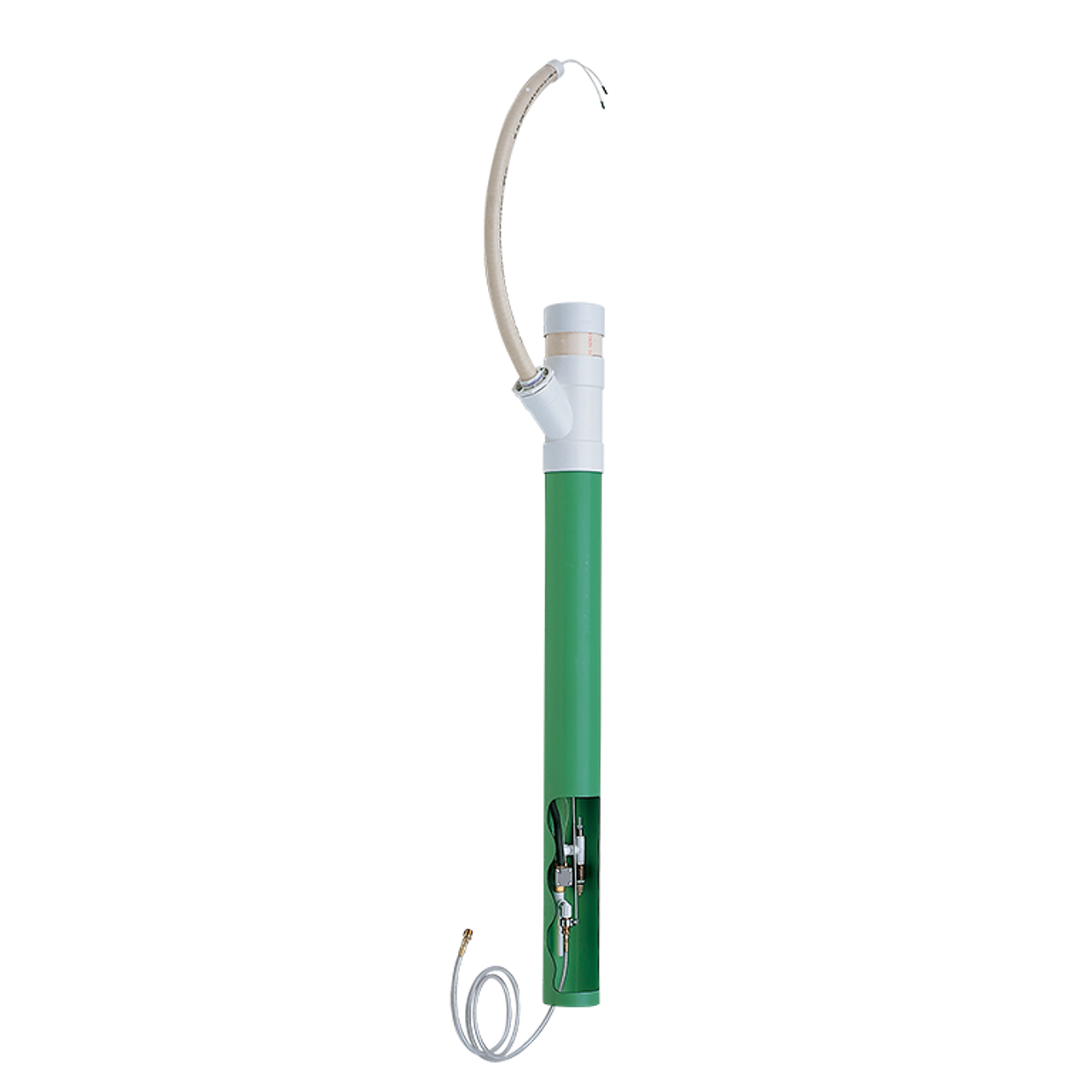

Short Description: Model 6518FR is a fully engineered pneumatic operated freeze-resistant valve system installed below frost line.
Spec Details: Model 6518FR freeze-resistant bury valve for use with single bubbler head pedestal fountains shall include a brass pneumatic operated valve installed below the frost line, check valve to drain water from unit when not in use and to prevent back-flow cross contamination, regulator valve to control stream height, separate valve access and pull-out design for easy maintenance, 6" (15.2 cm) diameter PVC pipe to encase valve assembly, and 1/2" NPT supply.
Features & Benefits:
- Installed below the frost line, the valve remains fully functional under the worst of weather conditions, with the fountain remaining functional as well
- If a maintenance issue ever arises, rest assured that the valve assembly is easily removed and replaced without disrupting the remainder of the fountain
- Flow is easily adjustable with supplied regulator valve
- Unit is applicable for single pedestal mounted fountain designs
Useful Documents
Spec SheetInstallation Drawing
Parts Breakdown Drawing
Operational / Maintenance Manual
