Product Description

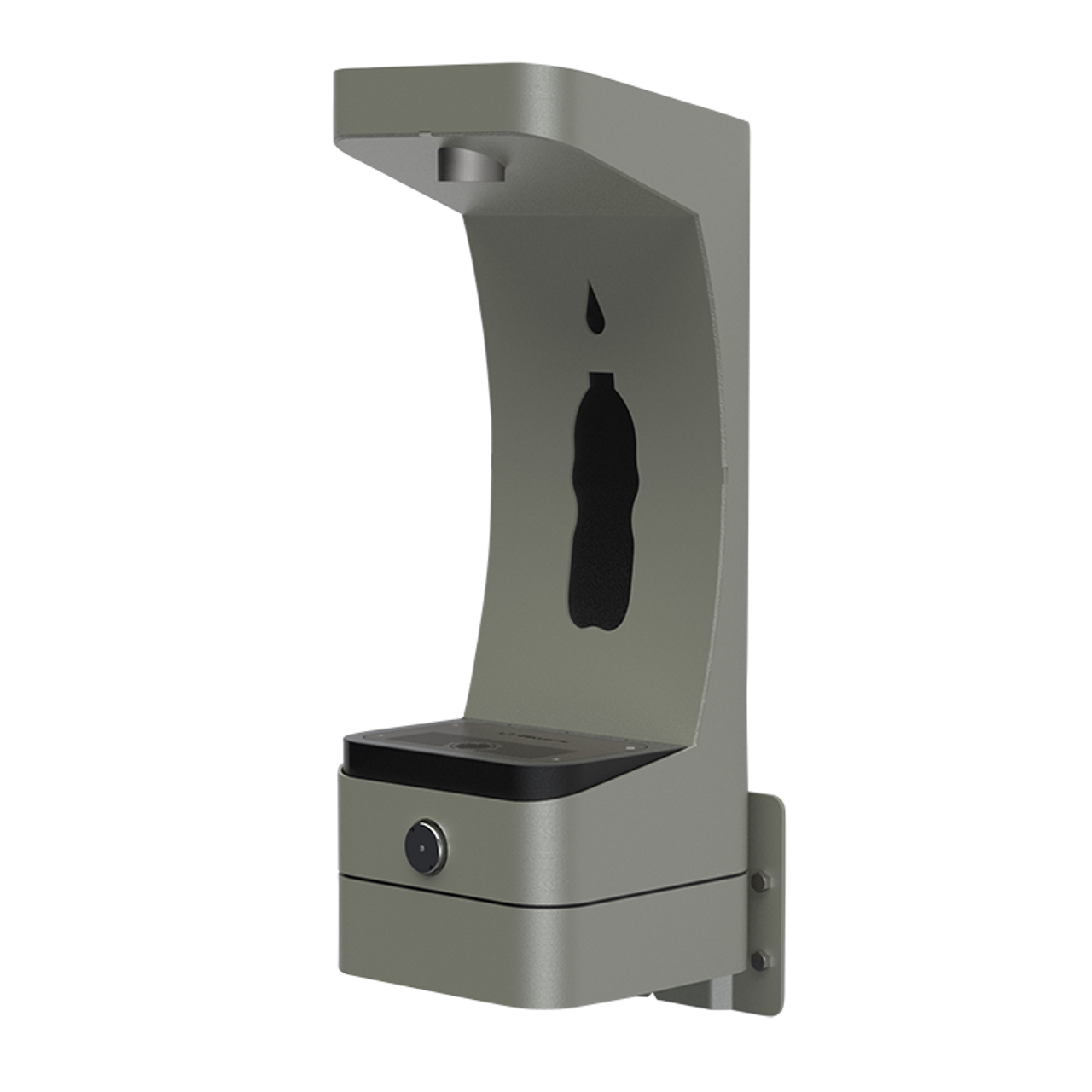

Short Description: Model 3690 config WM, wall mounted, heavy-duty outdoor, ADA accessible bottle filler with matte silver powder-coated finish.
Spec Details: Wall-mounted ADA compliant sport bottle-filling station for all users when mounted with water nozzle outlet no higher than 48” inches. Heavy-duty stainless steel construction with powdercoated matte silver color exterior finish. Push button activated valve with machined stainless-steel body, and with chrome- plated brass vandal-resistant push button assembly which allows for front access to the water control cartridge, stream adjustment, and water supply strainer replacement. Quick-fill 1.0 gpm laminar water flow with renewable nozzle inserts, and a level base 304 stainless steel drain cover plate. Certified by CSA to NSF/ANSI 61, section 9 and NSF/ANSI 372; and was evaluated to be compliant to U.S. and Canada Plumbing Codes including Uniform Plumbing Code (UPC), International Plumbing Code (IPC) and National Plumbing Code of Canada (NPC) by CSA.
Color/Finish Category: Stainless Steel
Color/Finish Name: Stainless Steel
Installation Type: Wall Mounted
Features & Benefits:
- Heavy-duty fabricated stainless steel with matte silver powder-coated finish
- Large-opening bottle filler with quick-fill 1 gpm flow rate
- Easy maintenance with front access to valve adjustment and cartridge replacement
- 100% lead-free waterways
Useful Documents
Spec SheetInstallation Drawing
Parts Breakdown Drawing
Operational / Maintenance Manual
