Product Description

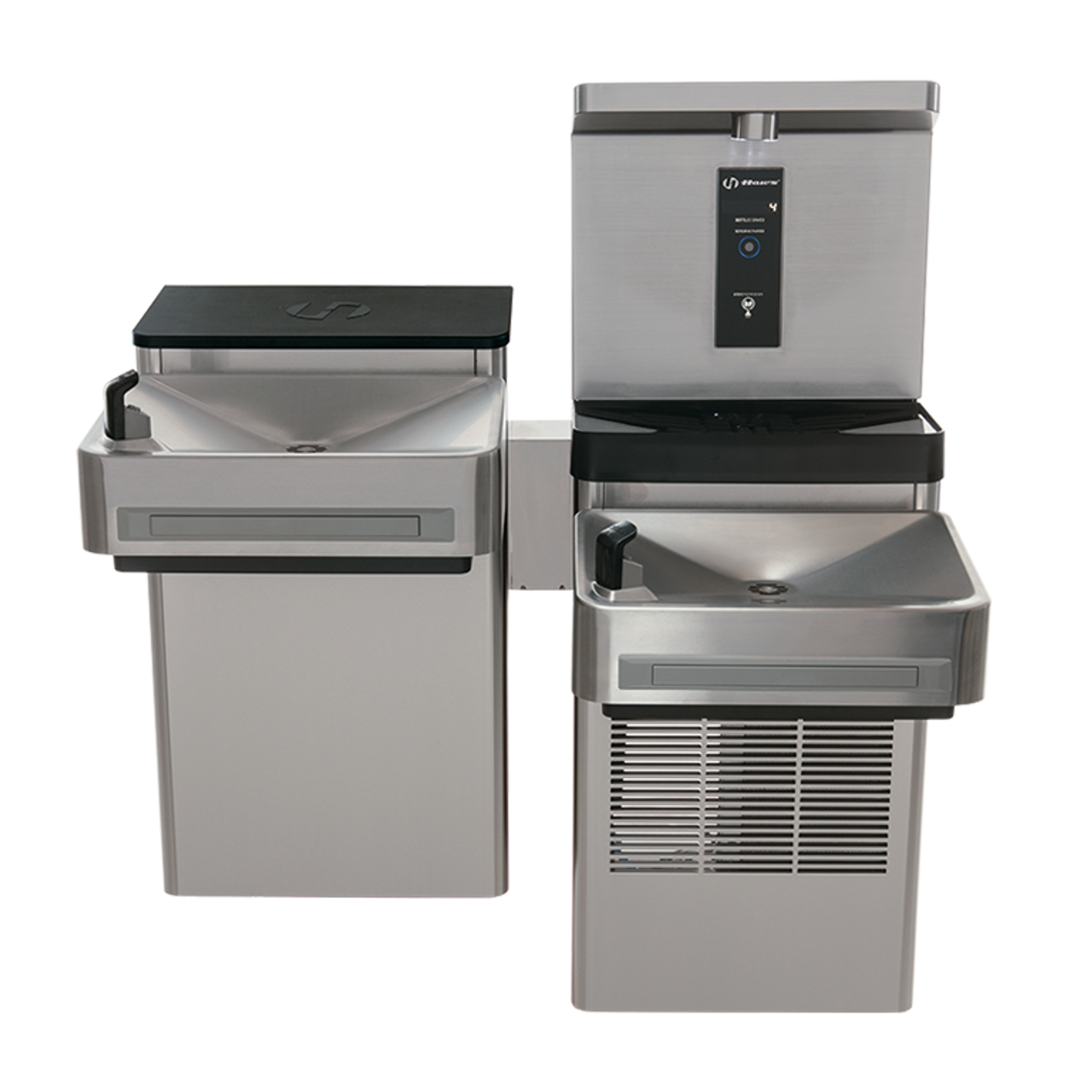

Short Description: Model 1212SF, filtered, stainless steel Hi-Lo wall-mount ADA water cooler with bottle filler features an electronic bubbler valve and push bar assembly, sensor operated bottle filler, and bubbler deactivation feature.
Spec Details: Model 1212SF indoor wall-mount ADA Hi-Lo stainless steel filtered water cooler and bottle filler shall include an ASHRAE compliant, hermetically sealed R-134a refrigeration system with adjustable thermostat. Unit features a unique, modern Hi-Lo (dual fountain) design with stainless steel outer shell. Energy savings feature powers down refrigeration system after 60 minutes of non-use and the lights shut off, and will automatically start again when used. The unit can also be programmed to shut down during planned facility closures, weekends, etc. Digital LED interface keeps user appraised of filter usage, programming, and error codes. The 3000-gallon (11,356 L) filter with Electronic Lifecycle Control turns water off when capacity is reached. Flow will begin again when new filter is installed. Bottle filler basin drains directly to the unit's waste. The system includes electronic front push bar controlled solenoid valves, .45 gpm self-regulating, anti-rotational bubbler heads with flexible antimicrobial mouth guards, bubbler head deactivation option, bottle filler auto purge every 24 hours, instantaneous tankless water cooler for consistent cool water, and LED illuminated bottle fill area. 115 Volts, 60Hz, rated watts: 350, full load amps: 5. Dimensions: (L x W x H) 18-3/4 x 34-1/16 x 40-3/4"
Color/Finish Category: Stainless Steel
Color/Finish Name: Stainless Steel
Installation Type: Wall Mounted
Features & Benefits:
- Flexible bubbler mouth guard to protect against injury
- Self-regulating bubbler flow - no need to adjust to varying incoming water pressures
- Anti-rotational screwed-in-place bubbler head
- Hands-free bottle filler sensor operation
- LED illuminated bottle fill area
- Quick 1.1 GPM fill rate (depending on incoming pressure) for bottle filler
- Smart energy savings feature powers down refrigeration system after 60 minutes of non-use and the lights are shut off, and will automatically start again when used or lights are restored to normal
- Programmable to be shut-down during planned facility closures, weekends, etc.
- High traffic area ready with a 3000-gallon (11,356 L) capacity filter
- Durable, easy to clean stainless steel skin
- Retrofit installation compatibility over many existing water coolers
- 100% lead free waterways
- Unique basin design reduces water splashing and simplifies cleaning
- Galvanized steel frame
- Rated for indoor use
- Designed and assembled in the USA
