Product Description

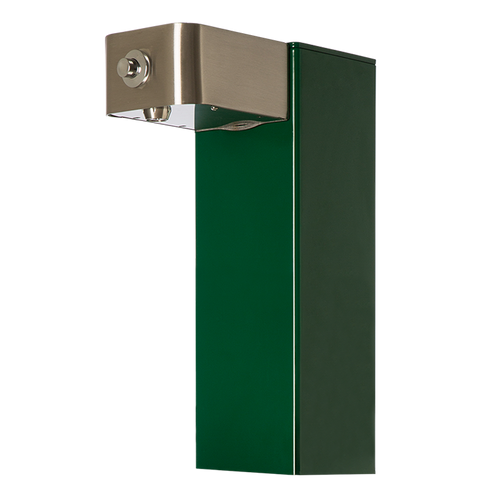

Short Description: Model 3377BFFR, freeze-resistant, bottle filler attachment comes with push button operation, 3/16" galvanized steel top-access pedestal extension with green powder-coated finish, and a vandal resistant bottom plate.
Spec Details: Model 3377BFFR freeze-resistant bottle filler attachment for the 3377FR pedestal drinking fountain shall include a 14 gauge Type 304 Stainless Steel bottle filler bracket, and a 3/16" galvanized steel top-access pedestal extension with green powder-coated finish, polished chrome-plated brass push-button, and vandal-resistant bottom plate. May be an accessory to a new 3377FR pedestal drinking fountain or retrofit to an existing 3377FR. .................................................. ........................................................................................................ REQUIRES MODEL 6518.2FR PRICED SEPARATELY.
Color/Finish Category: Painted Steel
Color/Finish Name: Stainless Steel Satin & Green Powder-Coated Steel
Installation Type: Pedestal Mounted
Features & Benefits:
- Polished chrome-plated push-button requires less than 5 lbs. (2.7 kg) of push force to activate.
- Fully engineered system with the pneumatic operated freeze-resistant valve installed below frost line to drain water to non-freezing depth allowing fountain to function year-round. Assembly can be lifted to surface and lowered back into casing for easy maintenance without disturbing the fountain.
- Adjustable, splash-free, 1 gpm (3.78 L) laminar water flow.
- Heavy-duty 3/16" (.47 cm) galvanized steel pedestal attachment is supplied with a top down access plate and finished with green powder-coat paint.
- Bottle filler attachment can be ordered with a 3377FR pedestal drinking fountain, or added to an existing installation.
Useful Documents
Spec SheetInstallation Drawing
Parts Breakdown Drawing
Operational / Maintenance Manual
